Hip orthosis AM-SB-05 DUAL

HIP REPLACEMENT

Hip replacement surgery is a procedure in which a doctor surgically removes a painful hip joint with arthritis and replaces it with an artificial joint often made from metal and plastic components. This surgery is often the only way to relieve the pain and improve the walking. After procedure, patient should keep upright position the very next day. Unfortunately, up to 12 months after hip replacement surgery, pivoting or twisting on the involved leg should be avoided. Patient should also not cross the involved leg past the midline of the body nor turn the involved leg inward and you should not bend at the hip past 90 degrees. All of these activities may damage the “new joint” and another hip replacement could be necessary. To ensure safety, patient should consider using our hip abduction brace AM-SB-05 DUAL with innovative lower limb abduction system “Hip Joint Control Flex”.

Charakterystyka produktu

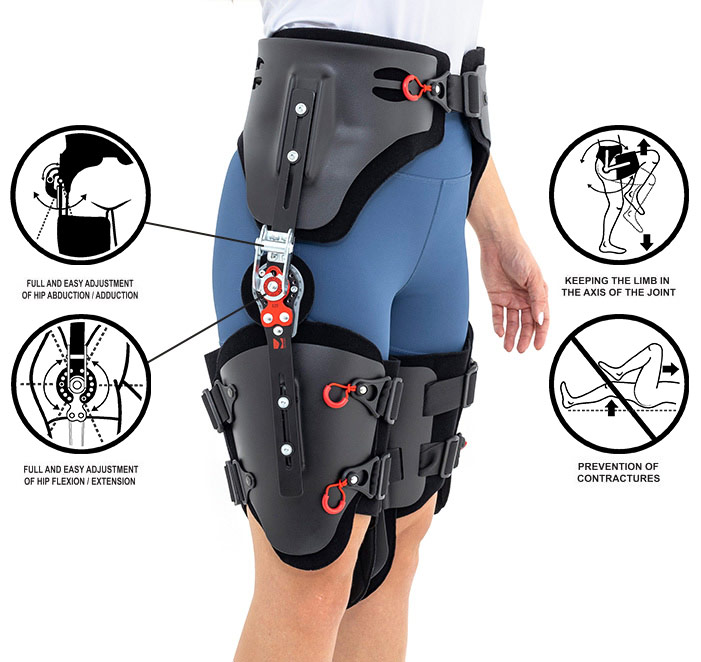

AM-SB-05 DUAL is an universal hip brace with control of flexion/extension and abduction/adduction.

Our hip brace AM-SB-05 DUAL is made of Active3D™, equipped with soft universal abdominal and thigh bands and anatomic shaped monocentric splint with ROM adjustment.

In the soft, abdominal and thigh part we used special ABS plastic elements with Velcro straps. The splint is equipped with innovative Press-slide system which provides smooth full length adjustment. Our hip brace AM-SB-05 DUAL maintains required hip position, reinforces the joint and provides po-op control. It’s excellent solution for improving the gait pattern and treat the muscles contractures. The fast and easy adjustment provides full anatomical flexion/extension and adduction/abduction control. Before limit the hip motion, consult your doctor.

• PROPER GAIT PATTERN
• HIGH QUALITY OF STABILIZATION WITH ANATOMIC SHAPED MONOCENTRIC SPLINT
• INNOVATIVE SPLINT’S ABDUCTION AND ROM ADJUSTMENT
• SEMI-RIGID PLASTIC ELEMENTS FOR HIP REINFORCEMENT
• PATIENT COMPLIANCE
• UNIVERSAL ABDOMINAL AND THIGH SUPPORT

Purpose of use

1. After hip joint replacement – endoprosthesoplasty
2. Hip dislocation or Potential High Risk Dislocation
3. Hip displasia (anterior/posterior)
4. Osteoarthrosis (also known as Osteoarthritis)
5. Coxarthrosis
6. Hip joint instability
7. Post-Operative
8. Pre-Operative
9. Hip immobilization
10. Muscles contractures

Size	Waist circumference	How to measure
Universal	min 75 – max 125 cm (29,5″ – 49,2″)
Size	Thigh circumference 5 cm below the groin	How to measure
Universal	min 40 cm – max 70 cm (min 15,7″ – max 27,6″)

Total length of product:
min: 54 cm (21,3″)
max: 68 cm (26,8″)

Click on the photo to enlarge

MATERIALS

Active3D™

Active3D™ is thermoformed fabric made of special foamed, cell-closed designed material. It reduces the pressure on the body or any abrasions made by orthopaedic stays and aluminum splints. It is fully waterproof fabric and does not absorb sweat. It’s easy to clean. Due to its features, the fabric is an excellent product for making medical orthopaedic braces and orthoses. ACTIVE 3D™ has various external self-gripping layers. Our material has special, thermoformed properties and may be shaped according to the functional goals of the final braces.

STIFFENINGS

Splint SAFE HIP

SAFE HIP SPLINT - it is a light, universal and very strong orthopedic splint designed for hip joint orthoses. The splint is perfect for use after hip surgery, it controls both the angle of hip flexion and abduction of the lower limb. The splint is made of a very strong aluminum alloy and high-quality steel, which guarantees proper and reliable postoperative protection of the hip joint. Both the upper and lower arm of the splint are equipped with 3D supports, which are made of a very strong PE called ABS. The height of the hip basket is adjustable, which allows you to easily set the orthopedic range of motion at the height of the hip joint. Additionally, hip basket has adjustable width and a very strong front fastening realized on swivel quick-release buckles. The lower 3D thigh supports are also made of ABS and also have height and limb rotation adjustments. Additionally, the thigh supports have a stabilizer of the medial part of the knee to prevent accidental deformation of the protected limb. The thigh support is also fastened with quick-release buckles, which guarantees a perfect fit of the circumferential tapes to any shape of the thigh. Both the elements of the femoral support and the elements of the hip have been equipped with soft thermoformed 3D cushions, perfectly relieving the product from the patient's body, and the special channels allowing air to migrate, thanks to which the patient's skin is properly oxygenated after the surgery, which speeds up the treatment process. In addition, the 3D pads have a cut-off function in order to adjust the product to the patient's body size. The ROM has been additionally strengthened, in which specially reinforced hexagonal screws were used as angle locks, which guarantees the stability of the set angle, even with heavy and obese patients. The clock has a full extension lock and adjustment of the flex and extension angle in every possible configuration in the range: 0, 15, 45, 60, 80 and 100 degrees. The angle lock is secure and cannot be changed accidentally or by an unauthorized person due to the fact that an Allen key is required to change it. The splint additionally has a specia adjustment of the lower limb abduction, thanks to which this setting becomes extremely precise, not found in this form in competing products on the market. Limb abduction is carried out using a specially cam, thanks to which the adjustment can withstand very high loads. The abduction function is possible thanks to the use of a reinforced metal hinge located directly above the orthopedic ROM.

• Download the splint adjustment instructions

PADDINGS

3D supports

3D relief supports are independent technical solutions to relieve the rigid elements of a given orthosis. These elements are made of supporting foams or EVA foam. These foams are connected with various types of skin-friendly materials and materials with an adhesive function. These pads have the appropriate shape and color adapted to the type of orthosis. They relieve both metal elements of orthoses, such as splints, stays, underwires and orthopedic drop locks, as well as other elements that should not come into direct contact with the patient's skin. These pads have an anatomical shape and are made of comfortable foam with proper hardness and elasticity, guaranteeing the proper therapeutic effect.
