Lower-extremity support AM-OSK-OL/2RA

6 POINT BRACES
The braces are intended for long-time using in patients with complicated knee instability (partly or complete ACL rupture), which is result of early injuries (before or postoperative) or after joint conditions.

Anatomic profiled splints increase the control of knee movement and provide additionally support points in hinges of the brace (5 and 6 point) by using sides pellotes. It increases control of movement in frontal and rotation plate. The anatomic fitting the brace to the limb is supported by anatomic drop lock.

The AM-OSK-OL/2RA brace provides excellent knee stabilization, including frontal and sagittal plate and control of rotation movement, what allows to replace partly injured ligaments and articular capsule. The high level of stabilization allows for competitive training (especially in skiing) or allows for taking part in sport and other activities even in senior age.

The brace is made of innovative material ProSIX™, AeroSpace™

We have provided high profiled splints 2RA in our braces to stabilize knee precisely. Using this splints allows to maintain the hinges in the axis joint during the physiological knee movement.

Purpose of use

Wrap around lower limb brace with anatomic adjustment should be applied in cases of:

• knee dislocation,
• knee twist and sprain,
• side instability of the knee joint,
• knee ligaments LCL, MCL and ACL injuries,
• knee ligaments reconstruction,
• other surgeries (orthopedic)

Size	(A) Thigh circumference 15 cm above the center of the patella	(B) Calf circumference 15 cm below the center of the patella	How to measure
S	40-44 cm (15,7″-17,3″)	30-34 cm (11,8″-13,4″)
M	44-48 cm (17,5″-18,9″)	34-38 cm (13,6″-15″)
L	48-52 cm (19″-20,5″)	38-42 cm (15,2″-16,5″)
XL	52-56 cm (20,7″-22″)	42-46 cm (16,7″-18,1″)
XXL	56-60 cm (22,2″-23,6″)	46-50 cm (18,3″-19,7″)
XXXL	60-64 cm (23,8″-25,1″)	50-54 cm (19,9″-21,3″)

Total length of product: 46 cm (18,1″)

Setting up

Click on the photo to enlarge

MATERIALS

AeroSpace™

AeroSpace™ is an innovative new generation raw material. It is a distance elastic 3D knitted fabric consisting of two layers of facings and an interlacing that creates the appropriate thickness of the raw material and has relieving properties. The knitwear is made of the highest quality polyester yarn - guaranteeing high mechanical strength and spandex ensuring its proper flexibility. This material is characterized by a very low weight, high flexibility and a very large openwork structure, allowing for very easy drainage of sweat from the body and bringing fresh air to the skin. Products made of this raw material are neutral to the secured joint, do not heat or cool it, but ensure its proper compression and fit and reduce muscle vibrations generated during physical exertion. Its thickness and 3D structure perfectly relieves the orthopedic splints, stays or other elements mounted on the product and guarantees velvety softness to the touch.

ProSix™

ProSix™ is an innovative fabric 3D, elastic in all directions and fitting to the limb precisely. The external layer is 3D material providing excellent stabilization. There is duothermic spacer foam providing high air permeability and compression inside. The skin has contact with cotton that is breathable and soft. ProSix™ is friendly and neutral for the skin and has Oeko-Tex Standard 100 certificate.

TECHNOLOGICAL SYSTEMS

STIFFENINGS

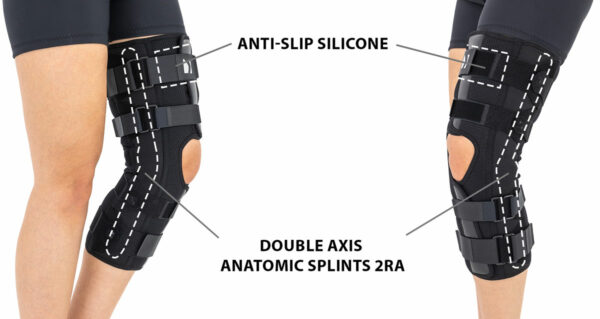

Splint 2RA Precision

Splints 2RA Precision are a double axis anatomic splints which reflect the knee movement and during performance do not change their position towards the joint axis. Splints 2RA are double axis polycentric splints, with coupling mechanism with two main conductive elements which move of parabolic tracks. Such splints are mainly used in all knee joint braces and, apart from angle adjustment, the high lateral knee stabilization is very important. The splints are manufactured with high quality of sanded aluminium, durable cover which what makes splints neutral to the influence of sweat and salt. Flexion and extension angle adjustment is possible with special allen screws. Every brace is equipped with special Allen key which is necessary for adjustment. Anatomic splints provides hyperextension block, 30°, 55°, 75°, 95°, 110° flexion and 15° or 75° extension. The angle adjustment clock is secured from manipulation by unauthorized people. Standard length of the splints is: 290 and 390 mm. The splint and its design are patented in European Union by Reh4Mat company.

• Download the splint adjustment instructions

PADDINGS

Patella silicone support

A whole series of silicone supports made in various shapes and colors to relieve the patella or to stabilize it. These pads have appropriate shapes and protrusions, thanks to which the orthosis perfectly fulfills its function. These pads have an anatomical shape and are made of silicone with the appropriate hardness and elasticity, guaranteeing the proper therapeutic effect.
