Lower limb support IB-SKL/1R GREY

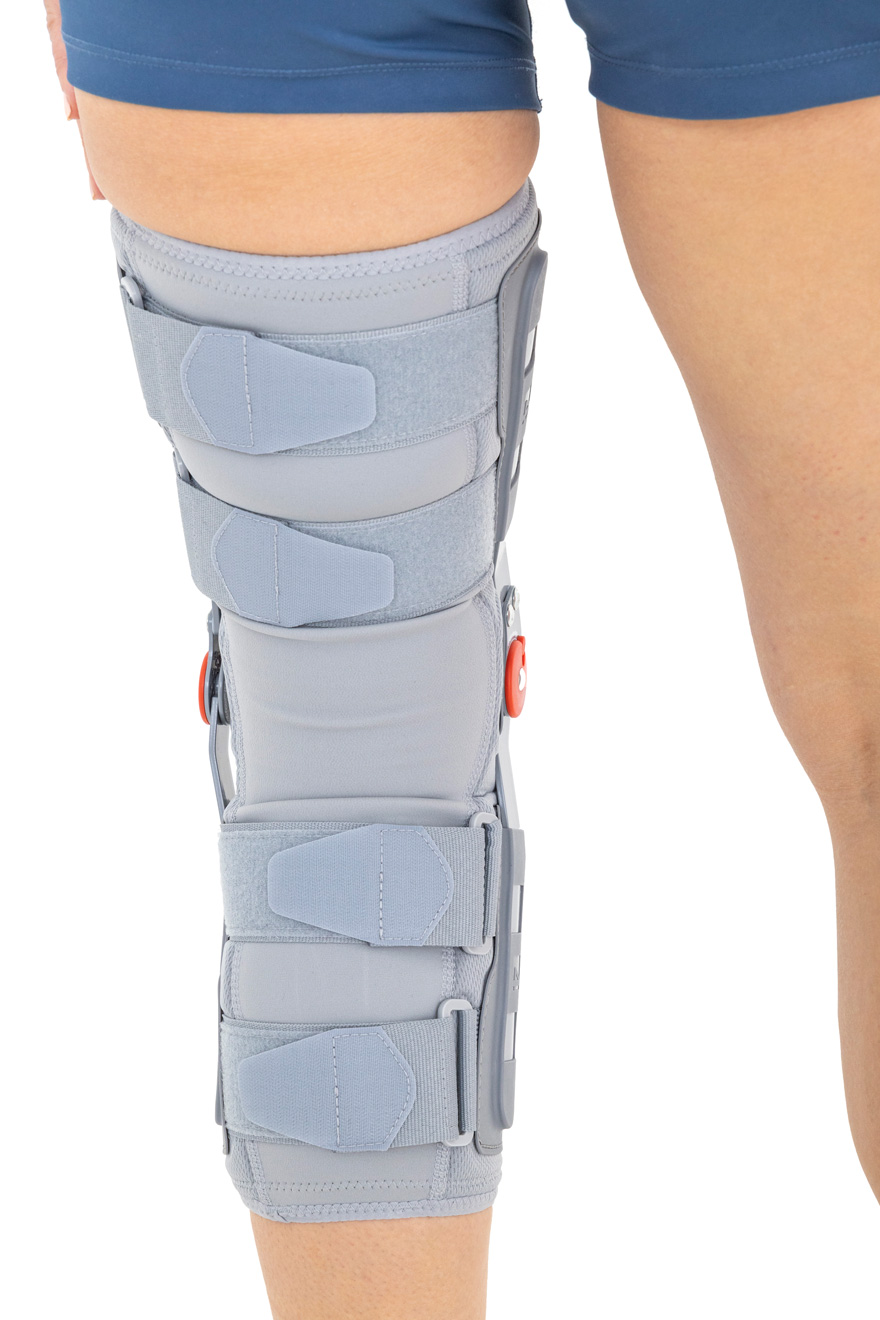

Long light knee brace IB-SKL/1R with the wrap-around design is the professional medical device 1st class, which improves the gait and the rehabilitation process. It is made of ProFit™ material which means precise fitting. The side parts are made of innovative material called Active3D™.

The device contains four independent Velcro straps and two 2-axial anatomical side splints. These splints, during the movement, reflect the natural anatomical knee joint work, what prevents the changing of their position against the knee axial.

The IB braces group is the best solution, especially for seniors, with high quality and unrivalled price. Thanks to their sides stabilization, patients with chronic knee instability caused by joint degeneration, can walk without crutches and walking sticks. Furthermore, the IB braces has the wrap around construction, which is very helpful for putting it in and off.

The brace has the excellent sides stabilization thanks to two splints with 1R drop lock, which provides 15° ROM adjustment. It prevents knee contractures and improves rehabilitation passively.

Each IB brace is equipped with two anatomical shaped pads, which stabilizes and supports the patella.

The IB braces have four Velcro straps with plastic ends, what make the using easier.

Purpose of use

• after injury of the knee which didn’t require surgery (dislocation with damage of ligaments, muscle sprains and strains)
• in postoperative rehabilitation as an prevention through knee contractures
• joint degeneration and/or knee instability due to injury, illness in case of patients not qualified or refusing surgery treatment
• atony of lower limbs in case of upright standing and learning to walk

Size	Circumference (A)	Circumference (B)	How to measure
S	40 – 44 cm 15,7″ – 17,3″	30 – 34 cm 11,8″ – 13,4″
M	44 – 48 cm 17,3″ – 18,9″	34 – 38 cm 13,4″ – 14,9″
L	48 – 52 cm 18,9″ – 20,5″	38 – 42 cm 14,9″ – 16,5″
XL	52 – 56 cm 20,5″ – 22″	42 – 46 cm 16,5″ – 18,1″
2XL	56 – 60 cm 22″ – 23,6″	46 – 50 cm 18,1″ – 19,7″

Right and left leg specific.

Click on the photo to enlarge

MATERIALS

Active3D™

Active3D™ is thermoformed fabric made of special foamed, cell-closed designed material. It reduces the pressure on the body or any abrasions made by orthopaedic stays and aluminum splints. It is fully waterproof fabric and does not absorb sweat. It’s easy to clean. Due to its features, the fabric is an excellent product for making medical orthopaedic braces and orthoses. ACTIVE 3D™ has various external self-gripping layers. Our material has special, thermoformed properties and may be shaped according to the functional goals of the final braces.

ProFit™

ProFit™ is a double-layer fabric that is elastic in all directions and fits to limb precisely. The external side is made of spandex providing excellent compression and absorbs muscle shocks in physical activity. The internal side consists of microfibre, cotton and elastane what makes it skin-friendly, breathable and provides velvet softness. ProFit™ is friendly and neutral for the skin and has Oeko-Tex Standard 100 certificate. In some products this material can have an internal elastic cotton layer.

STIFFENINGS

Splint 1R Orthodesign

Szyna ortopedyczna 1R orthodesign, to nowatorskie podejście do tematyki szyn ortopedycznych z regulacją kąta zgięcia i wyprostu. Innowacyjność szyny polega na tym, że w zegarze o średnicy nie przekraczającej 30 mm, zastosowaliśmy regulację kąta zgięcia i wyprostu co 15 stopni. Dodatkowym atutem szyny jest to, że regulacja odbywa się nie przy użyciu wkrętów imbusowych, jak to się odbywało w poprzedniej generacji szyny, lecz za pomocą wkładanych stalowych nitów, które dla ułatwienia wyjmowane są z gniazd kątowych przy użyciu załączonego do szyn magnesu. Wisienką na torcie jest pierścień blokujący, który dzięki systemowi zapadkowemu nie pozwoli na samoczynne przestawienie się wcześniej ustawionego kąta. W ortezach kolana szyny mają odsadzenie goleniowe, co pozwala na bardziej precyzyjne dopasowanie ortezy kolana, a co za tym idzie dokładniej realizują regulację ruchomości stawu, w pozostałych wyrobach zaś, ortezy mają formę prostą. Od spodniej strony zegara zamontowano owalny element do którego doklejono gripper niezbędny do przymocowania do zegara miękkich poduszek bocznych 3D. Szyny te, przy użyciu klucza ortopedycznego będącego w ofercie Reh4Mat, mogą być w niektórych przypadkach indywidualnie dopasowane do kształtu kończyny pacjenta, poprzez ich lekkie dogięcie. Pobierz instrukcję regulacji szyny 1R orthodesign

PADDINGS

2D supports

2D supports are, apart from 3D supports, the second type of supports used in the production of orthoses. They are made of various types of relieving foams and have very different shapes. The special feature of these pelottes is that, unlike the 3D pelottes, they are not independent parts of the orthosis, but only their parts, that must be sewn between the materials from which the orthosis is made to work properly. These pads have an anatomical shape and are made of comfortable foam with proper hardness and elasticity, which guarantees the proper therapeutic effect.

3D supports

3D relief supports are independent technical solutions to relieve the rigid elements of a given orthosis. These elements are made of supporting foams or EVA foam. These foams are connected with various types of skin-friendly materials and materials with an adhesive function. These pads have the appropriate shape and color adapted to the type of orthosis. They relieve both metal elements of orthoses, such as splints, stays, underwires and orthopedic drop locks, as well as other elements that should not come into direct contact with the patient's skin. These pads have an anatomical shape and are made of comfortable foam with proper hardness and elasticity, guaranteeing the proper therapeutic effect.

• Declaration of Conformity EC
• Manual
• Manual (other languages)
• Setting up
