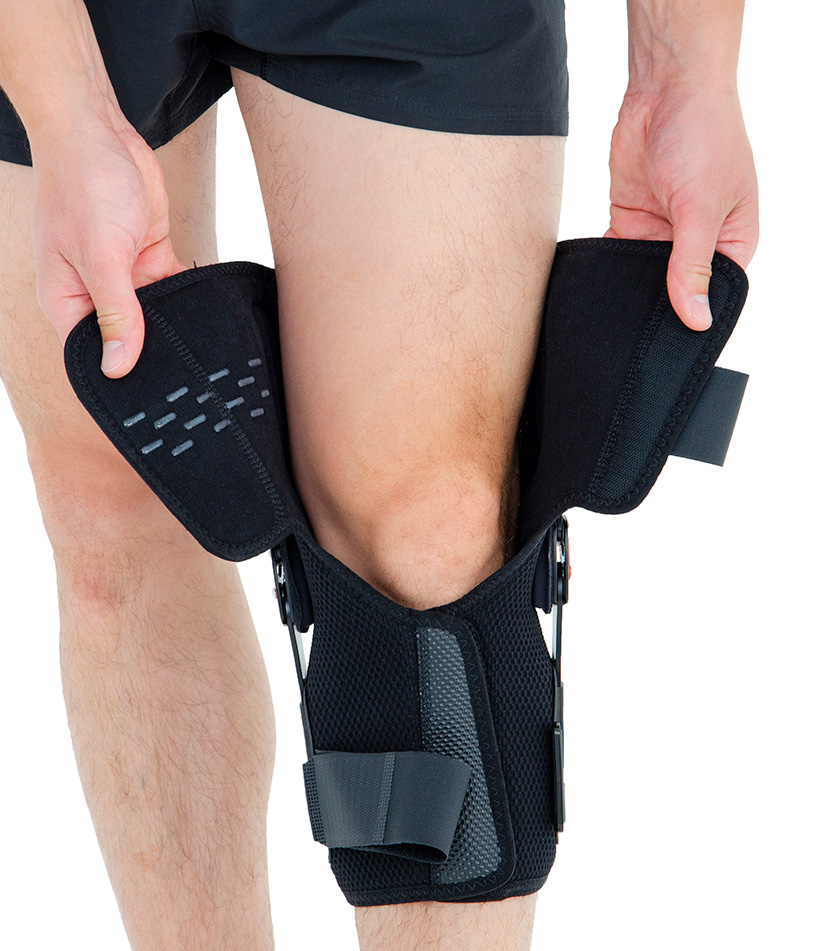

Lower-extremity support AM-OSK-O/2RA

Wrap around knee brace AM-OSK-O/2RA is the professional 1st class medical device increasing the gait quality and using in the rehabilitation. The brace is made of innovative material ProSIXProSIX™, which fits to limb’s shape precisely by stretching into all directions.

The device is equipped with two independent support straps made of VELCRO tapes and two 2-axial sides splints 2RA, which during the walking, reflect the anatomical knee movement, so they don’t change their position against the joint axis. The knee brace is uniquely light (only 440 g), what makes its more comfortable in everyday using. It can be used successfully by seniors or overweight patients thanks to special wrap around construction in front of the brace.

Purpose of use

• the ligaments injuries (ACL, PCL, LCL, MCL)
• knee sprain or strain
• knee dislocation
• after non-operative knee injuries (ligaments or muscles insertions strains)
• in joint degenerations and instability caused by sudden injuries or other conditions
• prophylactically in sport

It is possible to use a thinner pad under the drop lock.

Size	Knee circumference	How to measure
S	30-34 cm (11,8″-13,4″)
M	34-38 cm (13,6″-15″)
L	38-42 cm (15,2″-16,5″)
XL	42-46 cm (16,7″-18,1″)
XXL	46-50 cm (18,3″-19,7″)
XXXL	50-55 cm (19,9″-21,7″)
XXXXL	55-59 cm (21,9″-23,2″)

Total length of product: 36 cm (14,2″)

Click on the photo to enlarge

MATERIALS

ProSix™

ProSix™ is an innovative fabric 3D, elastic in all directions and fitting to the limb precisely. The external layer is 3D material providing excellent stabilization. There is duothermic spacer foam providing high air permeability and compression inside. The skin has contact with cotton that is breathable and soft. ProSix™ is friendly and neutral for the skin and has Oeko-Tex Standard 100 certificate.

STIFFENINGS

Splint 2R

Splints 2R – double axis polycentric splints, with rack gear which reflects the anatomic knee movement. Such splints are used in all knee joint braces where apart from angle adjustment lateral joint stabilization is also important. The splints are manufactured with high quality of aluminium alloy with sanded, durable cover which is neutral to the influence of sweat and salt. Required flexion and extension angle in every 20° is set by using the special pins. The splints are equipped with special oval covers to prevent the pins from falling out as well as from changing of the angle by unauthorized people. Standard length of the splints is 390 mm, but the braces with longer splints are additionally equipped with lateral stabilization of the knee joint. The splint and its design are patented in European Union by Reh4Mat Company.

• Download the adjustment instructions for the splint 2R

Splint 2RA Precision

Splints 2RA Precision are a double axis anatomic splints which reflect the knee movement and during performance do not change their position towards the joint axis. Splints 2RA are double axis polycentric splints, with coupling mechanism with two main conductive elements which move of parabolic tracks. Such splints are mainly used in all knee joint braces and, apart from angle adjustment, the high lateral knee stabilization is very important. The splints are manufactured with high quality of sanded aluminium, durable cover which what makes splints neutral to the influence of sweat and salt. Flexion and extension angle adjustment is possible with special allen screws. Every brace is equipped with special Allen key which is necessary for adjustment. Anatomic splints provides hyperextension block, 30°, 55°, 75°, 95°, 110° flexion and 15° or 75° extension. The angle adjustment clock is secured from manipulation by unauthorized people. Standard length of the splints is: 290 and 390 mm. The splint and its design are patented in European Union by Reh4Mat company.

• Download the splint adjustment instructions

PADDINGS

3D supports

3D relief supports are independent technical solutions to relieve the rigid elements of a given orthosis. These elements are made of supporting foams or EVA foam. These foams are connected with various types of skin-friendly materials and materials with an adhesive function. These pads have the appropriate shape and color adapted to the type of orthosis. They relieve both metal elements of orthoses, such as splints, stays, underwires and orthopedic drop locks, as well as other elements that should not come into direct contact with the patient's skin. These pads have an anatomical shape and are made of comfortable foam with proper hardness and elasticity, guaranteeing the proper therapeutic effect.

• Declaration of Conformity EC
• Manual
• Manual (other languages)
• Setting up
