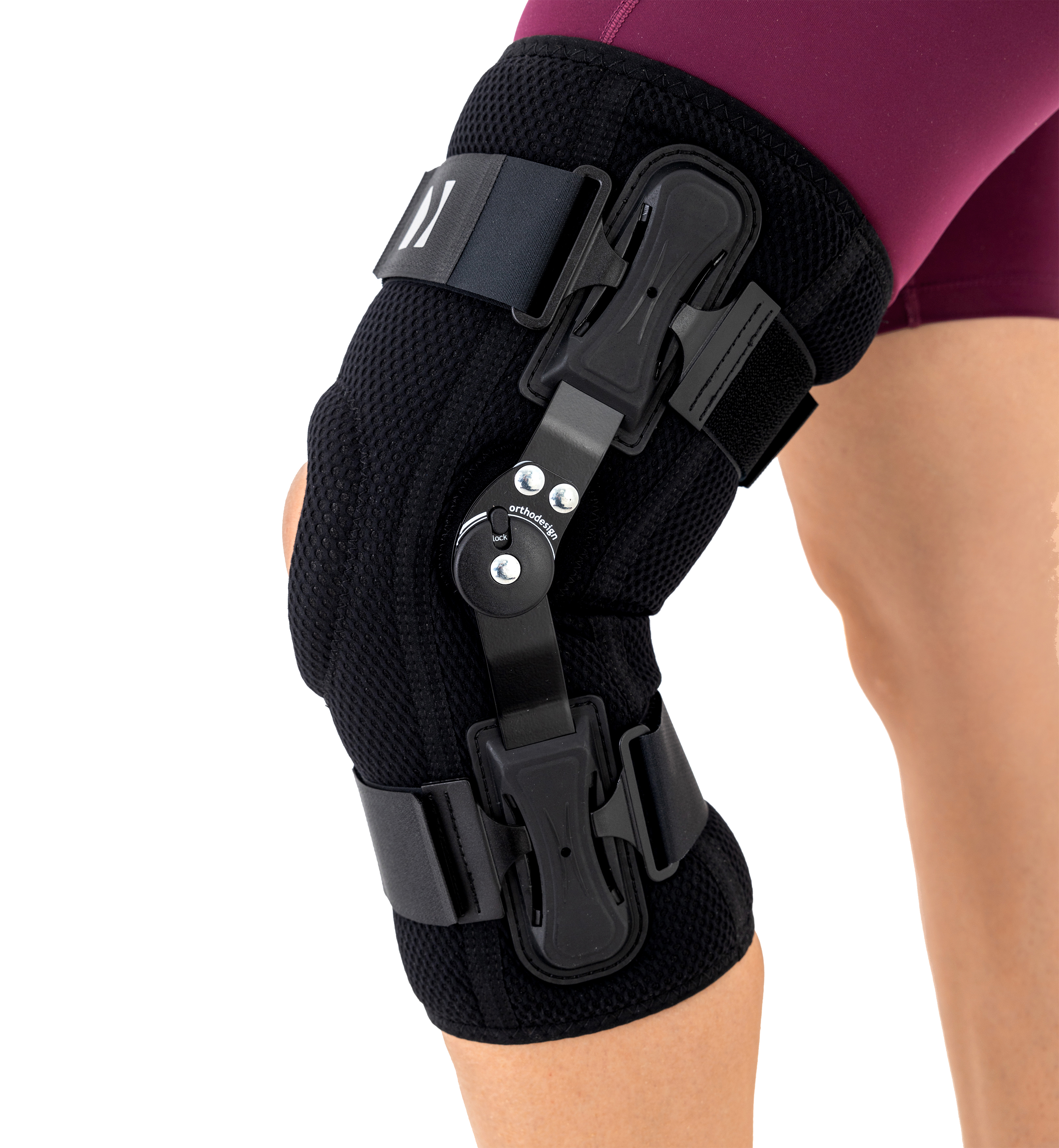

Lower limb support AM-OSK-Z/1R-01

Knee brace is made of perforated foam, which is coated with lining fabric. It holds two independent supported sets of the Velcro tapes. The device is equipped with two sides, shaped splints, which are made of carbon fibres and consists of special drop lock allowing for ROM adjustment in every 15°. This precise adjustment facilities the rehabilitation process. The system of splints in open knee brace is arranged in a shape of X letter, which allows to adhere perfectly to the limb and also enables to stabilize the joint precisely. Internal perforation allows skin to breath and reduces overheating. Using of anatomic patella support made of foam with antimycotic properties provides maximum stabilization of the patellofemoral joint.

Purpose of use

AM-OSK-Z/1R-01 brace should be applied in cases of:

• knee dislocation,
• knee twist and sprain,
• side instability of the knee joint,
• knee ligaments LCL, MCL and ACL injuries,
• knee ligaments reconstruction,
• other surgeries (orthopedic).

It is possible to use a thinner pad under the drop lock.

Size	Knee circumference	How to measure
S	30-34 cm (11,8″-13,4″)
M	34-38 cm (13,6″-15″)
L	38-42 cm (15,2″-16,5″)
XL	42-46 cm (16,7″-18,1″)
2XL	46-50 cm (18,3″-19,7″)
3XL	50-55 cm (19,9″-21,7″)

Total length of the product: 36 cm (14,2″)

Click on the photo to enlarge

MATERIALS

ProSix™

ProSix™ is an innovative fabric 3D, elastic in all directions and fitting to the limb precisely. The external layer is 3D material providing excellent stabilization. There is duothermic spacer foam providing high air permeability and compression inside. The skin has contact with cotton that is breathable and soft. ProSix™ is friendly and neutral for the skin and has Oeko-Tex Standard 100 certificate.

TECHNOLOGICAL SYSTEMS

EASY FIT Solution

The patented EASY FIT SOLUTION system is designed to enhance the fit of products to body curves and therapeutic needs of users. The system is intended for injury stabilization and posture correction.
It consists of universal inserts, which allow for the attachment of clips with elastic elements of the stabilization system and provide angular movement, enabling precise adjustment of products to the user's body curves.
Additionally, the inserts allow for circumferential guidance of straps, providing circumferential stabilization of the selected area. The system is attached to soft components of products such as lower and upper limb orthoses, vests, or circumferential belts.
EASY FIT SOLUTION enables combining rigid components (splints, bars) with elastic straps, providing an individual approach when using standard rehabilitation equipment.

STIFFENINGS

Splint 1R Orthodesign

Szyna ortopedyczna 1R orthodesign, to nowatorskie podejście do tematyki szyn ortopedycznych z regulacją kąta zgięcia i wyprostu. Innowacyjność szyny polega na tym, że w zegarze o średnicy nie przekraczającej 30 mm, zastosowaliśmy regulację kąta zgięcia i wyprostu co 15 stopni. Dodatkowym atutem szyny jest to, że regulacja odbywa się nie przy użyciu wkrętów imbusowych, jak to się odbywało w poprzedniej generacji szyny, lecz za pomocą wkładanych stalowych nitów, które dla ułatwienia wyjmowane są z gniazd kątowych przy użyciu załączonego do szyn magnesu. Wisienką na torcie jest pierścień blokujący, który dzięki systemowi zapadkowemu nie pozwoli na samoczynne przestawienie się wcześniej ustawionego kąta. W ortezach kolana szyny mają odsadzenie goleniowe, co pozwala na bardziej precyzyjne dopasowanie ortezy kolana, a co za tym idzie dokładniej realizują regulację ruchomości stawu, w pozostałych wyrobach zaś, ortezy mają formę prostą. Od spodniej strony zegara zamontowano owalny element do którego doklejono gripper niezbędny do przymocowania do zegara miękkich poduszek bocznych 3D. Szyny te, przy użyciu klucza ortopedycznego będącego w ofercie Reh4Mat, mogą być w niektórych przypadkach indywidualnie dopasowane do kształtu kończyny pacjenta, poprzez ich lekkie dogięcie. Pobierz instrukcję regulacji szyny 1R orthodesign

PADDINGS

3D supports

3D relief supports are independent technical solutions to relieve the rigid elements of a given orthosis. These elements are made of supporting foams or EVA foam. These foams are connected with various types of skin-friendly materials and materials with an adhesive function. These pads have the appropriate shape and color adapted to the type of orthosis. They relieve both metal elements of orthoses, such as splints, stays, underwires and orthopedic drop locks, as well as other elements that should not come into direct contact with the patient's skin. These pads have an anatomical shape and are made of comfortable foam with proper hardness and elasticity, guaranteeing the proper therapeutic effect.

Patella stabilizers

Relief stabilizers of various shapes made in 2D technology. They are made of relieving foams connected on one side with a fabric friendly to the patient's skin, and on the other with a gripper, thanks to which the stabilizer can be attached to the adhesive element of the orthosis. Thanks to such a structure, these pads do not have to be sewn into the orthosis, and they can simply be fastened to it from the inside. These elements have an anatomical shape and are made of comfortable foam with proper hardness and elasticity, which guarantees the proper therapeutic effect.

• Declaration of Conformity EC
• Manual
• Manual (other languages)
• Setting up
